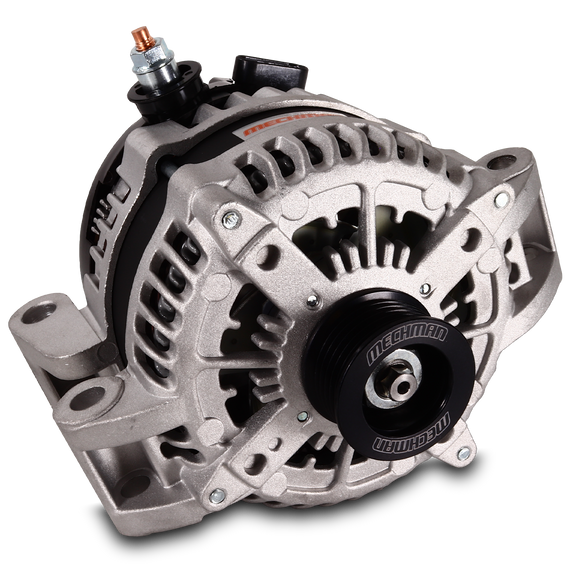

The Elite series offers the highest possible amperage and durability available in a direct bolt in large case alternator. 6 phase technology, combined with massive twin rectifier assemblies and 12 diodes makes these alternators totally durable for daily use. These durable alternators will crank out 200+ amps at engine idle speeds, with a full 320+ amps HOT RATED at normal cruising speeds. INSTALLATION NOTES: Like most high output alternators, this unit comes equipped with a smaller 1.75 inch diameter alternator pulley, and will require a slightly shorter drive belt to be installed for proper belt tension.
Fitment Guide:
| Make |
Model |
Engine Size |
Year |
| Ford |
Bronco |
5.0L / 5.8L |
1993 - 1996 |
| Ford |
E Series Van |
4.2L |
1997 - 2003 |
| Ford |
Exporer |
4.0L OHV |
1991 - 2001 |
| Ford |
F-150 |
4.2L |
1997 - 2004 |
| Ford |
F-150 |
5.0L / 5.8L |
1993 - 1996 |
| Ford |
Ranger |
2.3L |
1992 - 1997 |
| Ford |
Ranger |
2.5L |
1998 - 2001 |
| Ford |
Ranger |
3.0L |
1994 - 2005 |
| Mazda |
B2500 |
2.5L |
1998 - 2001 |
| Mazda |
B3000 |
3.0L |
1994 - 2005 |
