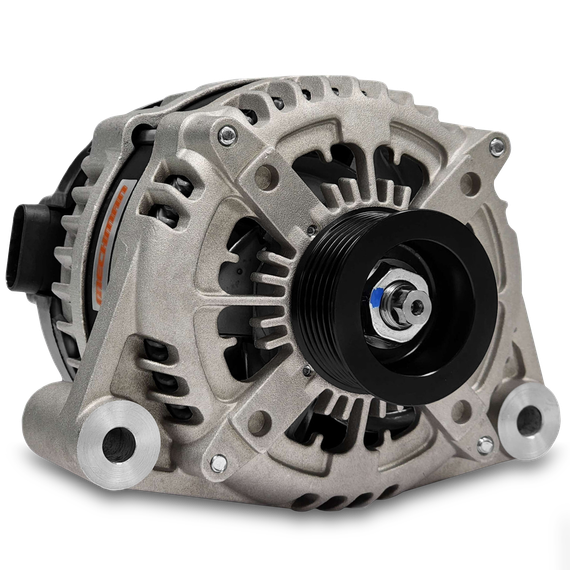

The Elite series large cast case 400-amp alternator offers great amperage output. Six phase technology, combined with massive twin rectifier assemblies and 12 huge diodes. These impressive alternators produce 190+ amps at engine idle RPM and 400+ amps at cruising speeds (stock diameter crankshaft pulley). ***THIS ALTERNATOR IS NOT INTENDED FOR RACING OR HIGH RPM USAGE. WARRANTY VOID IF OVERSPUN. THIS ALTERNATOR SHOULD ONLY BE USED IN 4,000+ WATT AUDIO SYSTEM APPLICATIONS OR ENGINES SWAPS WITH CORVETTE STYLE ALTERNATOR MOUNTING!!!. ***
This alternator is equipped with a 1.75" Mechman branded high output pulley. It is imperative that a 1/2" shorter serpentine belt is used with this alternator to avoid belt slip and maximum output power. You must also add 0-gauge power and ground wire from our alternator and go directly to the battery for maximum output power. You may leave your OEM cables in place, but the larger cables must be added with any amperage over 250 amps.
Many Corvettes experience electrical issues in near stock form so please ensure your current wiring is up to spec, secure, tight and routed away from high heat items under the hood. The starter wire and fan connector are known areas of concern and should be checked prior to installation of a higher output alternator. Adding a high output alternator will not solve bad or compromised wiring that is already present in the vehicle.
This alternator is equipped with a 1.75" Mechman branded high output pulley. It is imperative that a 1/2" shorter serpentine belt is used with this alternator to avoid belt slip and maximum output power. You must also add 0-gauge power and ground wire from our alternator and go directly to the battery for maximum output power. You may leave your OEM cables in place, but the larger cables must be added with any amperage over 250 amps.
Many Corvettes experience electrical issues in near stock form so please ensure your current wiring is up to spec, secure, tight and routed away from high heat items under the hood. The starter wire and fan connector are known areas of concern and should be checked prior to installation of a higher output alternator. Adding a high output alternator will not solve bad or compromised wiring that is already present in the vehicle.
*** WARRANTY IS VOID IF OVERSPUN!!!! ***
Warranty Disclaimer for MechMan Alternator Units
Automotive Alternators 2-Year Repair Warranty
Thank you for choosing MechMan alternators. We stand behind the quality of our products and offer a limited two-year repair warranty on all MechMan automotive alternators. This warranty allows you to return your MechMan alternator for repair within two years from the original purchase date.
Coverage and Conditions:
This warranty covers repairs to the MechMan alternator only and does not extend to other parts or equipment on the vehicle. Labor expenses related to the removal or installation of the alternator are not covered under this warranty. Please note that any alterations, physical abuse, misuse, improper installation, or use of the alternator outside its intended application will void the warranty. The MechMan two-year warranty is non-transferrable and is applicable only to the original purchaser. Customers must provide a copy of the original invoice to receive warranty service when sending in their alternator for repair.
Shipping Information:
Customers are responsible for shipping the alternator to the MechMan facility for warranty service. MechMan will cover the cost of return shipping for customers located in the continental 48 United States for in-warranty alternators; within reason. Customers with shipping addresses outside this area are responsible for the cost of return shipping. Return shipping is not covered for in-warranty alternator units that are tested with no problems found.
Marine Alternators 1-Year Repair Warranty
For our marine customers, MechMan offers a limited one-year repair warranty for marine-certified alternators. This warranty allows you to return your MechMan marine alternator for repair within one year from the original purchase date.
Coverage and Conditions:
This warranty covers repairs to the MechMan marine alternator only and does not extend to other parts or equipment on the craft. Labor expenses related to the removal or installation of the alternator are not covered under this warranty. Any modifications to the alternator, physical abuse, misuse, improper installation, or use of the alternator outside its intended application will void the warranty. The MechMan one-year warranty for marine alternators is non-transferable and applies only to the original purchaser. Customers must include a copy of the original invoice to receive warranty service when sending in their marine alternator for repair.
Shipping Information:
Customers are responsible for shipping the alternator to the MechMan facility for warranty service. MechMan will cover the cost of return shipping for customers located in the continental 48 United States for in-warranty alternators; within reason. Customers with shipping addresses outside this area are responsible for the cost of return shipping. Return shipping is not covered for in-warranty alternator units that are tested with no problems found.
Disclaimer: This warranty information is subject to change without prior notice. Please refer to our website for the most up-to-date warranty policies and guidelines.
Warranty Disclaimer for MechMan Alternator Units
Return Policy
MechMan alternators are crafted to order, ensuring the highest quality and performance. We offer a return policy for new and unused standard-issue MechMan alternators in their default configuration within 30 days from the date of purchase. After a thorough inspection, returned standard-issue alternators will be subject to a 10% restocking fee. The customer is responsible for shipping costs to the Mechman facility. The original unit received back for return must be in “like new” condition before a refund will be made. If the unit received is not in “like new” condition it will not be eligible for return. Please note that any custom orders with specific regulator, finish, or pulley modifications are non-returnable.
Fitment Verification:
To ensure proper fitment, please reach out to Tony@Mechman.Com for verification and confirmation before making a purchase. If you need to initiate a return, please contact us at 1-865-522-6166 to request an RGA number before sending back any goods. Alternatively, you can request an RGA number and find more information on our Returns page at Repairs - Mechman Alternators .
At MechMan, we strive to provide you with the best alternator solutions and customer service. We appreciate your business and are committed to your satisfaction. Should you have any questions or concerns, don't hesitate to reach out to our team. Thank you for being part of the MechMan community.
Definition of “Like new” condition:
"Like new" condition refers to an item that appears and functions as if it were brand new or almost new, with minimal to no signs of wear, damage, or defects. It should be pristine or near perfect, without any noticeable scratches, dents, or blemishes. An item described as being in "like new" condition is expected to perform as if it were fresh out of the box, with all original features and functionalities intact. It should be clean and well-maintained, showing little to no evidence of previous use. In summary, a "like new" condition means that the item is in an excellent state, almost indistinguishable from a new product, and would meet the expectations of a brand-new item's performance and appearance.
Disclaimer: This warranty information is subject to change without prior notice. Please refer to our website for the most up-to-date warranty policies and guidelines.
