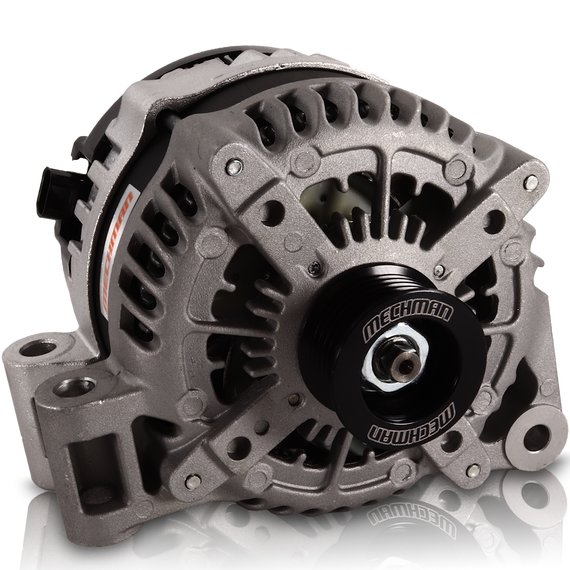

E Series 320 Amp Alt For Select GM 3.6L/3.0L

E Series 320 Amp Alt For Select GM 3.6L/3.0L

$519.00
star_border star_border star_border star_border star_border No reviews yet edit Write a Review
SKU:
11252320
Availability:
Most alternators are custom built to order. Standard build time is 2-3 weeks. If you need an alternator sooner than that, please contact a sales associate to see if any in-stock options are available.
Weight:
17 LBS

The Elite series high output alternators offer the highest possible amperage and durability available in a large case hairpin alternator. 6 phase technology combined with massive twin rectifier assemblies and 12 diodes make these alternators totally durable for daily use, while still maintaining great output. This alternator cranks out over 200 amps at engine idle speeds and a full 320+ at cruising speeds at FULL OPERATING TEMPERATURE. This alternator comes with a smaller diameter pulley installed on it and will require a 1/2" - 3/4" shorter belt for proper belt tension.



These alternators use the more robust 4 pin style regulator than the OE 2 pin ECU controlled alternator. There is no extreme voltage fluctuation as this will bypass the RVC charging system on all 2005> GM truck applications. Simply install the included 1 wire P101 harness to a tested 12v switched source and plug in the included P103 module into the vehicles 2 pin original alternator wiring harness. No check battery light, no computer-controlled voltage swings. The voltage you want, when you want it!

Fitment Guide:

Make Model Engine Size Year
Buick Enclave 3.6L 2008 - 2017
Buick Lacrosse 3.0L 2010
Buick Lacrosse 3.6L 2010 - 2017
Cadillac SRX 3.0L 2010 - 2011
Cadillac SRX 3.6L 2012 - 2016
Cadillac XTS 3.6L 2013 - 2017
Chevrolet Equinox 3.0L 2010 - 2012
Chevrolet Equinox 3.6L 2008 - 2017
Chevrolet Impala 3.6L 2012 - 2018
Chevrolet Malibu 3.6L 2008 - 2012
Chevrolet Traverse 3.6L 2009 - 2017
GMC Acadia 3.6L 2007 - 2017
GMC Terrain 3.0L 2010 - 2012
GMC Terrain 3.6L 2013 - 2017
Saturn Aura 3.6L 2008 - 2009
Saturn Outlook 3.6L 2007 - 2010
